8 ports base station antenna with integrated RET 698-960MHz/1710-2690MHz 15/17dBi 2.1m 2G/3G/LTE antenna
内置RET 8端口基站天线 698-960MHz/1710-2690MHz 15/17dBi 2.1m 2G/3G/LTE天线
Main Features:
·Frequency Range: 2* 698-960/2*1710-2690MHz
·8 ports base station antenna with integrated RET
·The product is suitable for the wireless coverage of urban basic network,
suitable for the intensive construction of co-construction and sharing.
主要特点：
·频率范围：2* 698-960/2*1710-2690MHz
·内置RET 8端口基站天线
·该产品适用于城镇基础网络无线覆盖、适合共建共享的集约化建设
Electrical Specifications | |||||||
Frequency Range(MHz) | 2 x 698-960MHz | 2 x 1710-2690MHz | |||||
698-803 | 824-880 | 880-960 | 1710-1880 | 1920-2170 | 2300-2400 | 2500-2690 | |
Gain(dBi) | 15 | 15.5 | 16 | 17.5 | 17.6 | 18.1 | 18.3 |
Polarization | +45°/-45° | +45°/-45° | +45°/-45° | +45°/-45° | +45°/-45° | +45°/-45° | +45° /-45° |
Horizontal Beamwidth(°) | 68±4.5 | 65±4.1 | 63±3.8 | 68±3.5 | 65±4.3 | 62±4.1 | 60±3.5 |
Vertical Beamwedth(°) | 9±0.6 | 8.5±0.8 | 8±0.5 | 7.2±0.6 | 6.2±0.6 | 5.8±0.3 | 5.2±0.4 |
Front to back Ratio, ±30° (dB) | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 |
First Upper Side Lobe Suppression (dB) | ≥16 | ≥16 | ≥16 | ≥17 | ≥17 | ≥17 | ≥17 |
Electrical Downtilt(°) | 2-12，continuously adjustable | ||||||
VSWR | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Port to Port Isolation (dB) | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 |
Cross polar ratio, Main direction（dB） | 17 | 18 | 18 | 15 | 16 | 17 | 15 |
Intermodulation IM3(2x43dBm carrier) | ≤-107dBm | ≤-107dBm | ≤-107dBm | ≤-107dBm | ≤-107dBm | ≤-107dBm | ≤-107dBm |
Impedance（Ω） | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Max. Average Input Power per Port (W) | 300 | 300 | 300 | 250 | 250 | 250 | 250 |
Support remote control RET | Support remote control electrical down tilt from OMC, use RET/ACU | ||||||
Mechanical specifications | |||||||
Antenna Dimensions (H x W x D) (mm) | ≤2100×450×210 | ||||||

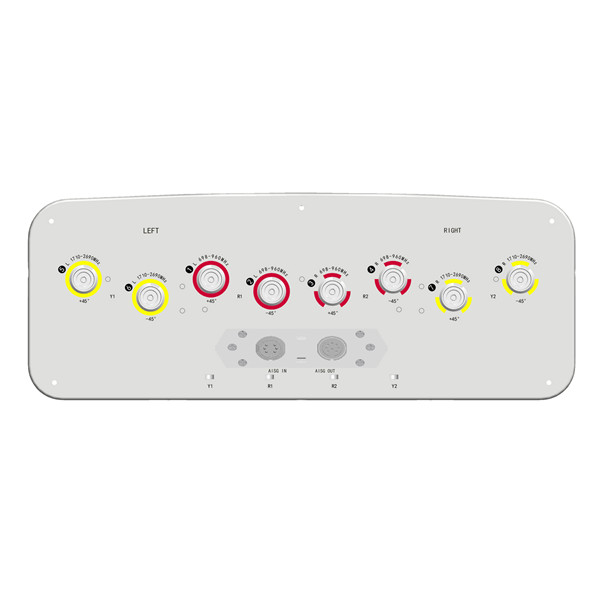

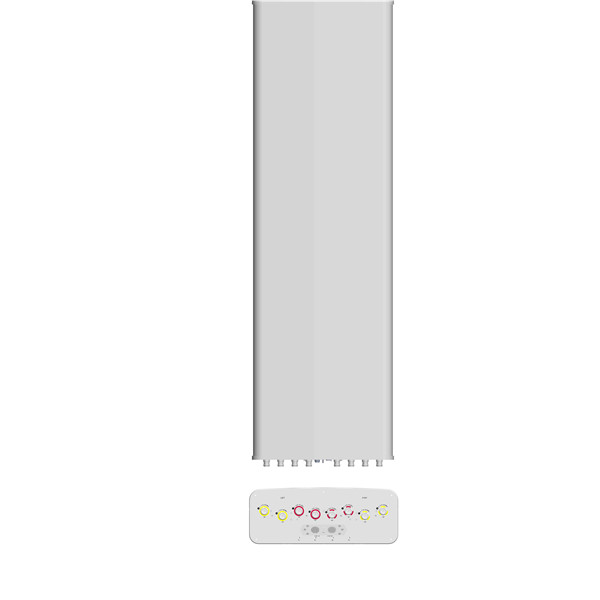

Input connector type | 8 x 4.3-10 female | ||||||
Connector position | Bottom | ||||||
RCU | Internal RCU with at least AISG 2.0 standard supported/RCU RCU have to be exchangeable without changing Antenna /RCU | ||||||
Operating temperature (ºC) | -40 ± 60 | ||||||
Radiator material | Aluminum | ||||||
Radome material | Fiberglass | ||||||
Reflector material | Aluminum | ||||||
Mechanical tilt (º) | ≥ 8 | ||||||
Maximum Wind Speed(km/h) | 200 | ||||||
Wind loading, Frontal (N) | ≤ 2000 | ||||||
Wind loading, Lateral (N) | ≤ 350 | ||||||
Wind loading, Rearal (N) | ≤ 1500 | ||||||
Lighting protection | DC Ground | ||||||
Radiation Pattern |
698～960 MHz |
|
1710～2690 MHz |
|
